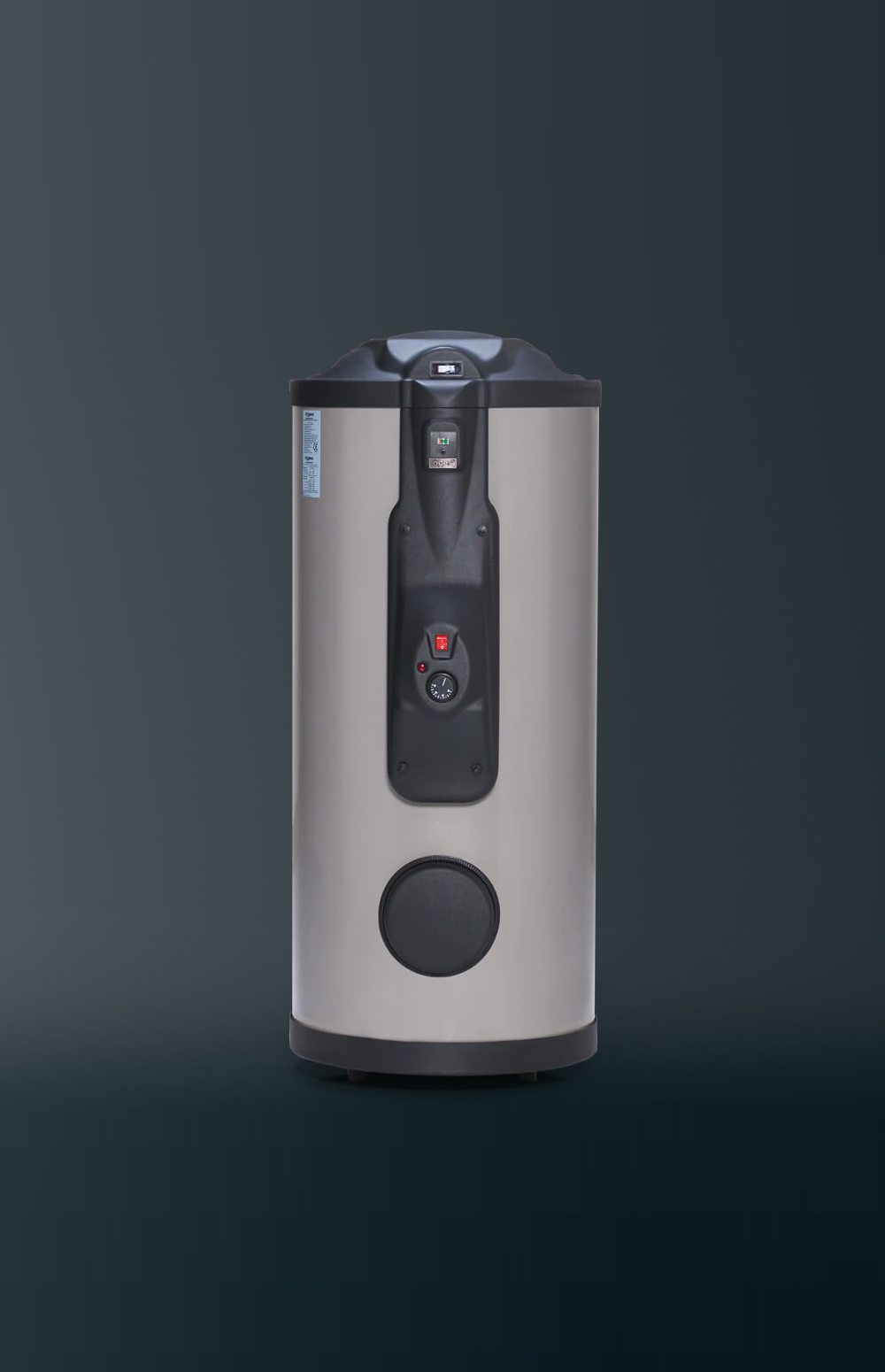

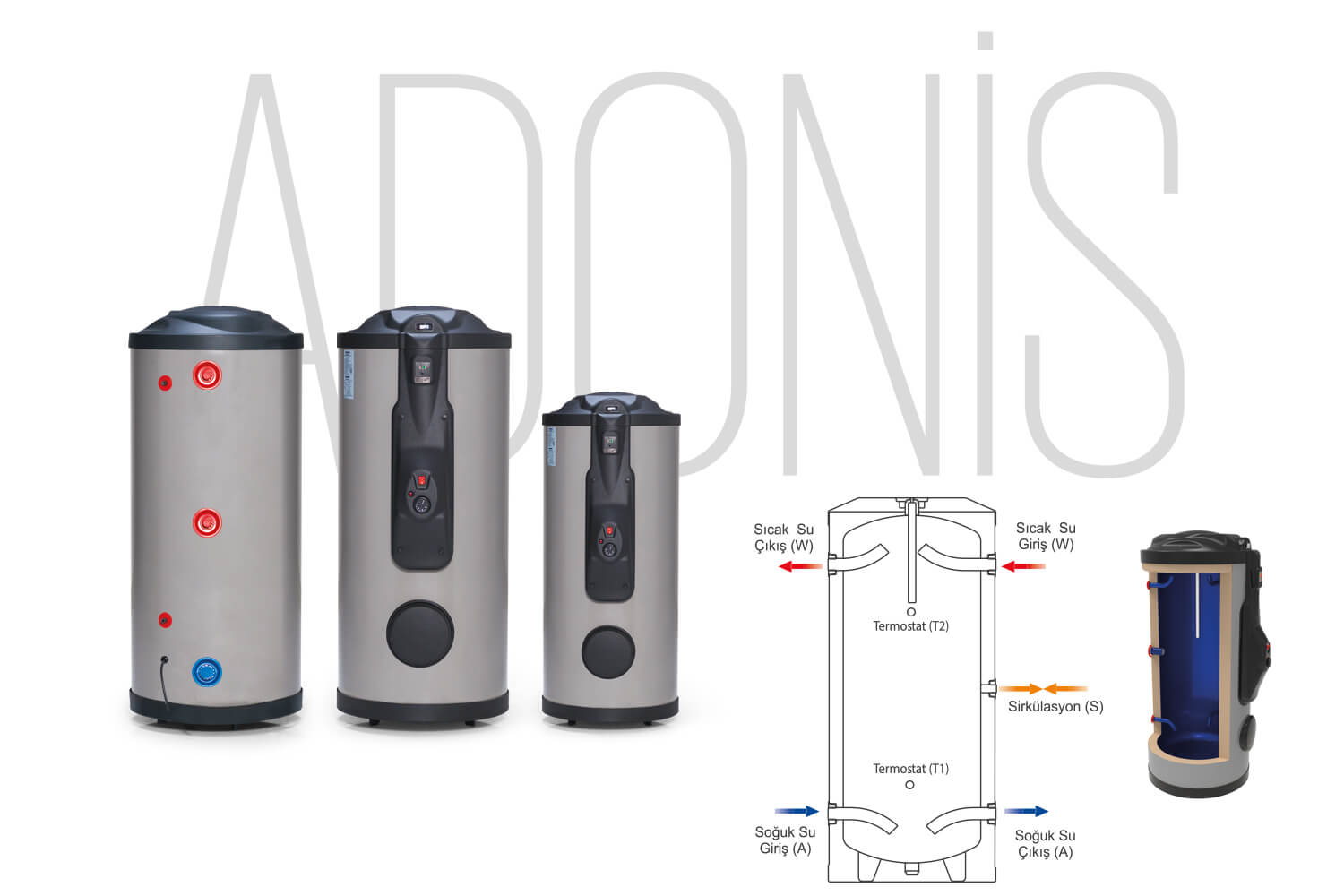

Adonis

Adonis

Yerli Üretim
Advantages,
 Accumulation tanks are the installation equipment that stores the energy and the water that it gets from the heat sources with the highest efficiency. By prolonging the life of heating resources, it saves money and reduces the cost of heating. In areas where boilers are inadequate, accumulation tanks are used with exchangers and offer very efficient effects.

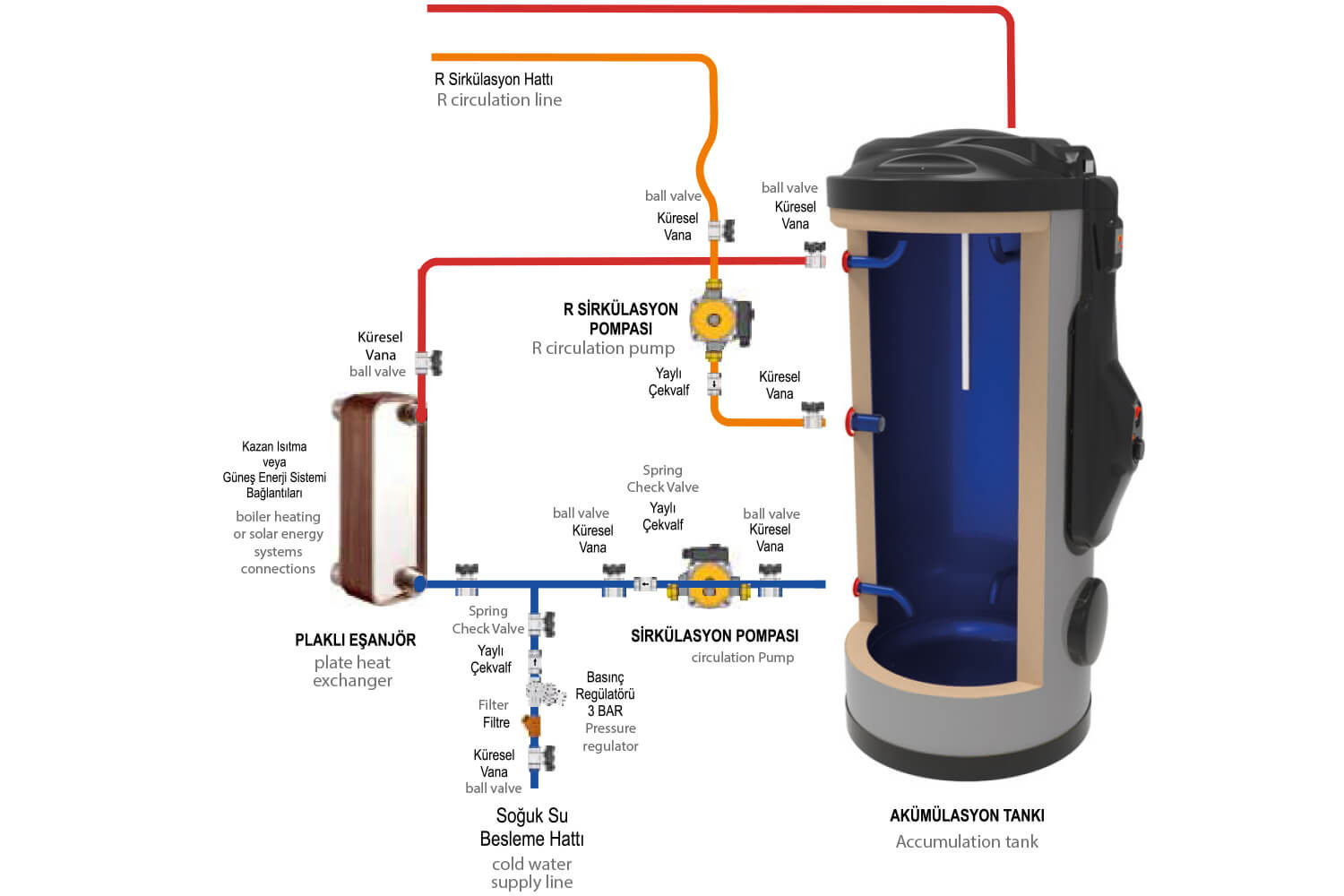

Working Principle
 Accumulation tanks are systems that store water by heating it in the tank with heats coming from various sources such as heat pumps, solid fuel boilers, solar energy, and plate heat exchanger.
Icon
Icon
Icon
Icon
System Features
TypeOG-03-100OG-03-160OG-03-200OG-03-300OG-03-400OG-03-500OG-03-600OG-03-800OG-03-800OG-03-1000OG-03-1500OG-03-2000OG-03-2500OG-03-3000OG-03-4000OG-03-5000
Capacity10016020030040050060080010001500200025002500400050006000
Diameter (D)48048058058075075075094010001200135014701470166016601760
Width (E)600600700700870870870110011501350150016201620182018201920
Height (H)1160161014251900152518252025201020151988,5204021452660300035003750
Anode1 1/4”1 1/4”1 1/4”1 1/4”1 1/4”1 1/4”1 1/4”1 1/4”1 1/4”1 1/2”1 1/2”1 1/2”1 1/2”1 1/2”1 1/2”1 1/2”
(H)1444159413371877149417941994198019761980198519802450295034353675
Flange (ØT)DN 100DN 100DN 100DN 100DN 100DN 100DN 200DN 200DN 200DN 400DN 400DN 400DN 400DN 400DN 400DN 400
(M)320320336336387387387477488717716755753120013801550
Max. Boiler Operation pressure10 bar10 bar10 bar10 bar10 bar10 bar10 bar10 bar10 bar10 bar10 bar10 bar10 bar10 bar10 bar10 bar
Max. Boiler Test pressure18 bar18 bar18 bar18 bar18 bar18 bar18 bar18 bar18 bar18 bar18 bar18 bar18 bar18 bar18 bar18 bar
Serpentine Operation pressure10 bar10 bar10 bar10 bar10 bar10 bar10 bar10 bar10 bar10 bar10 bar10 bar10 bar10 bar10 bar10 bar
Width577481991351501702302603354805556507859001050
