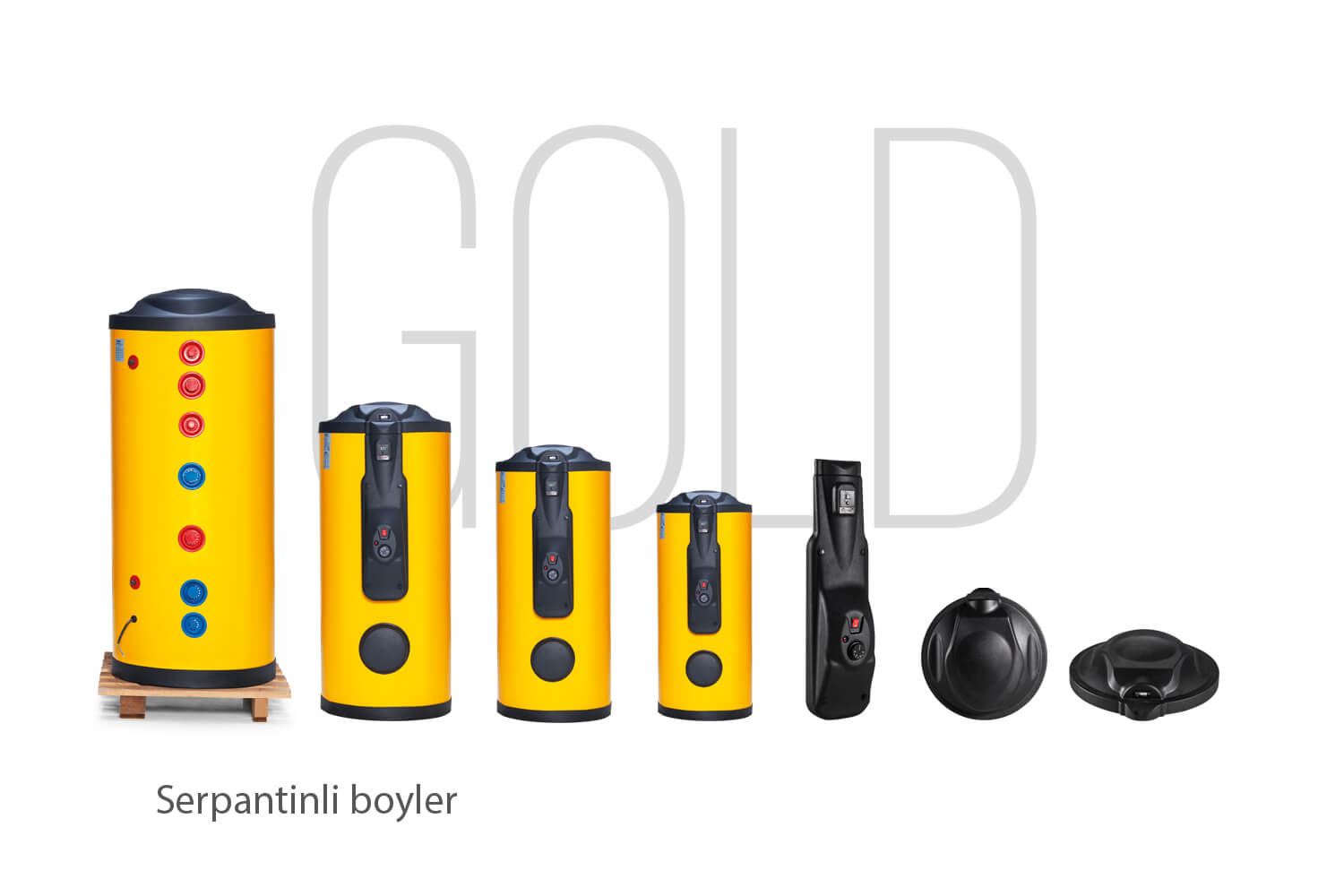

Gold

Advantages

The inner surfaces of the boiler tanks are covered with a titanium-based enamel (Glassy Surface).By applying this process; the resistance against corrosion is increased in accordance with the usage purposes of boilers. As the surface roughness of the tank is reduced by this process, the accumulation of material and bacteria on the surface during its use is reduced to a large extent and system hygiene is ensured. Fast boilers prevent the formation of quenching zones thanks to their special serpentine designs. Titanium enamel coating prevents bacterial growth and corrosion.

Working Principle

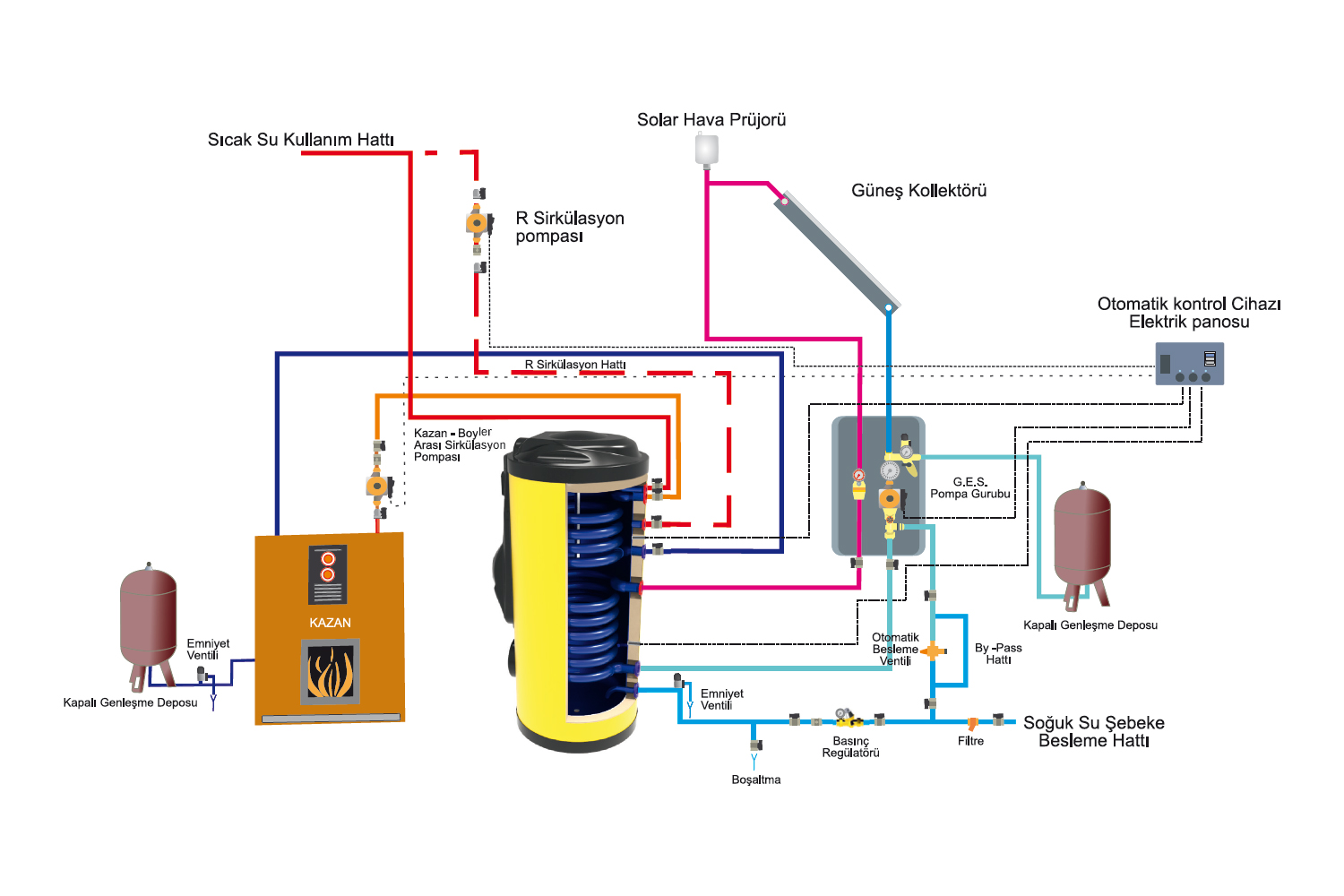

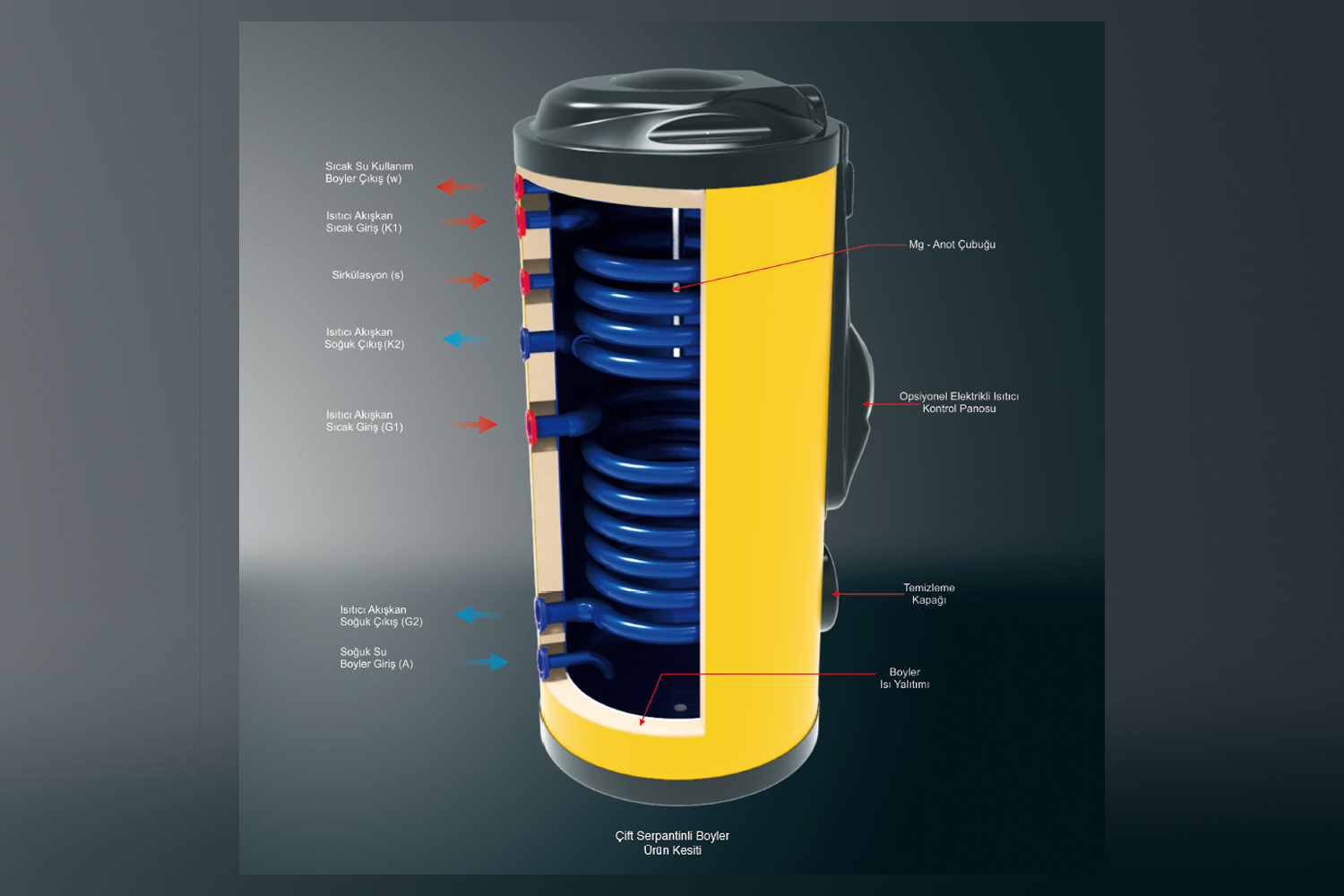

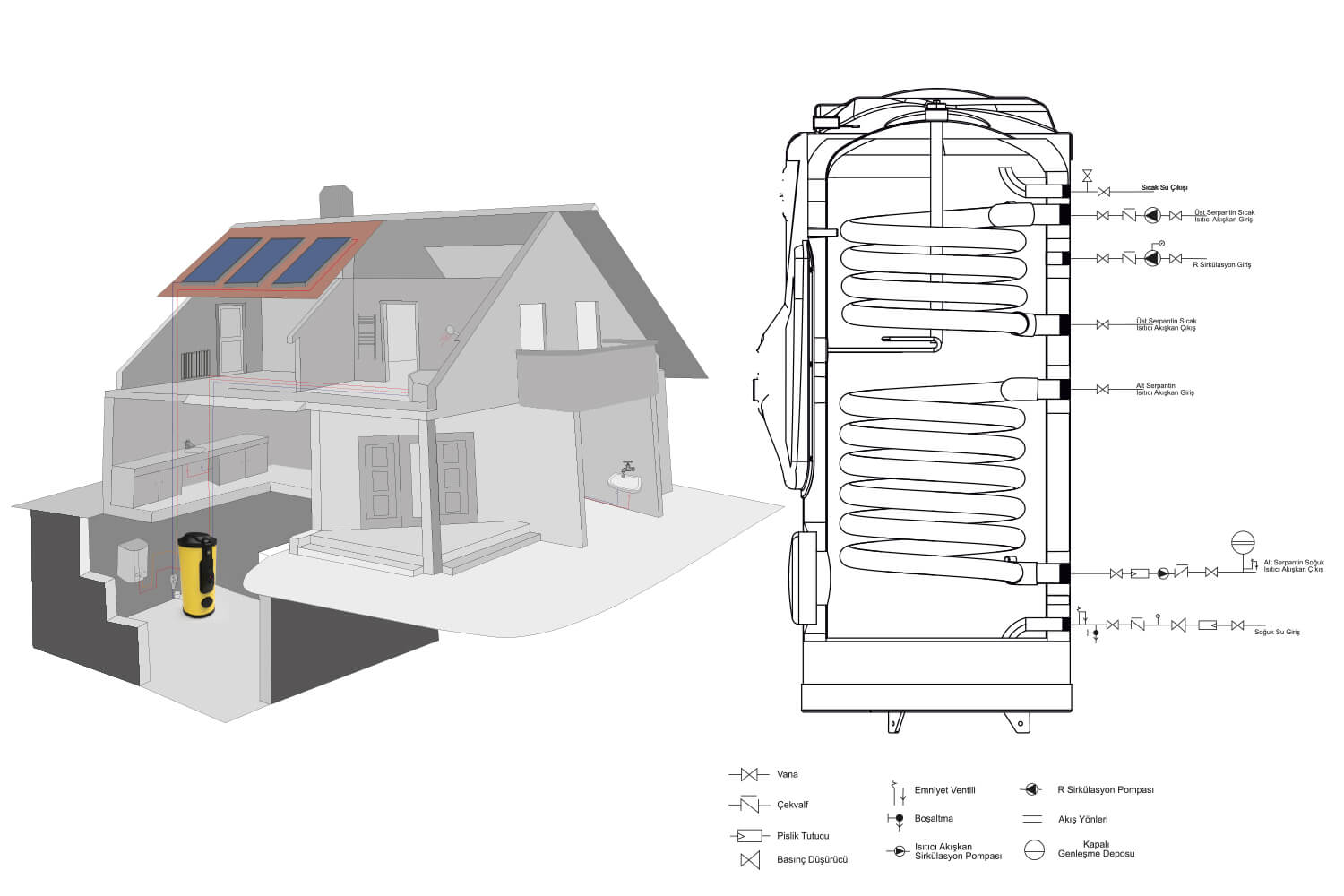

They are pressure vessels that heat and store water in apartments and all kinds of facilities with a central hot water system thanks to the specially designed serpentine for the production and storage of clean hot water. The double serpentine boiler is a kind of boiler that performs the heating process by means of the double serpentine in the boiler (for example, Those working with 2 heat sources such as solar energy, natural gas, solid fuel heater) in order to make the instant heating more powerful.

System Features

Type	OG-01-101	OG-01-161	OG-01-201	OG-01-301	OG-01-401	OG-01-501	OG-01-601	1OG-01-801	OG-01-1001	1OG-01-1501	OG-01-2001	OG-01-2501	OG-01-3001O	OG-01-4001	OG-01-5001	OG-01-6001
Capacity	100	160	200	300	400	500	600	800	1000	1500	2000	2500	3000	4000	5000	6000
Diameter (D)	480	480	580	580	750	750	750	940	1000	1200	1350	1470	1470	1660	1660	1760
Width (E)	600	600	700	700	870	870	870	1100	1150	1350	1500	1620	1620	1820	1820	1920
Height (H)	1610	1610	1425	1900	1525	1825	2025	2010	2015	1988,5	2040	2145	2660	3000	3500	3750
Heating Area 1 (Serpentine-WAT1 bottom)	0.82 m2	0.82 m2	0.99 m2	1.60 m2	1.82 m2	2.28 m2	2.50 m2	3.26 m2	3.53 m2	3.97 m2	4.95 m2	5.92 m2	7.39 m2	8.5 m2	11.74 m2	12.66 m2
Flange (ØT)	DN 100	DN 100	DN 100	DN 100	DN 200	DN 200	DN 200	DN 400	DN 400	DN 400	DN 400	DN 400	DN 400	DN 400	DN 400	DN 400
(M)	320	320	336	336	387	387	387	477	488	717	716	755	753	1200	1380	1550
Max. Boiler Operation pressure	10 bar	10 bar	10 bar	10 bar	10 bar	10 bar	10 bar	10 bar	10 bar	10 bar	10 bar	10 bar	10 bar	10 bar	10 bar	10 bar
Max. Boiler Test pressure	18 bar	18 bar	18 bar	18 bar	18 bar	18 bar	18 bar	18 bar	18 bar	18 bar	18 bar	18 bar	18 bar	18 bar	18 bar	18 bar
Max. Boiler Working Temprature	95 °C	95 °C	95 °C	95 °C	95 °C	95 °C	95 °C	95 °C	95 °C	95 °C	95 °C	95 °C	95 °C	95 °C	95 °C	95 °C
Serpentine Operation pressure	10 bar	10 bar	10 bar	10 bar	10 bar	10 bar	10 bar	10 bar	10 bar	10 bar	10 bar	10 bar	10 bar	10 bar	10 bar	10 bar
Serpentine Test pressure	18 bar	18 bar	18 bar	18 bar	18 bar	18 bar	18 bar	18 bar	18 bar	18 bar	18 bar	18 bar	18 bar	18 bar	18 bar	18 bar
Max. Serpentine Working Temprature	145 °C	145 °C	145 °C	145 °C	145 °C	145 °C	145 °C	145 °C	145 °C	145 °C	145 °C	145 °C	145 °C	145 °C	145 °C	145 °C
Width	65	95	105	120	175	185	200	275	330	510	560	595	835	1475	1650	1800
