Advantages

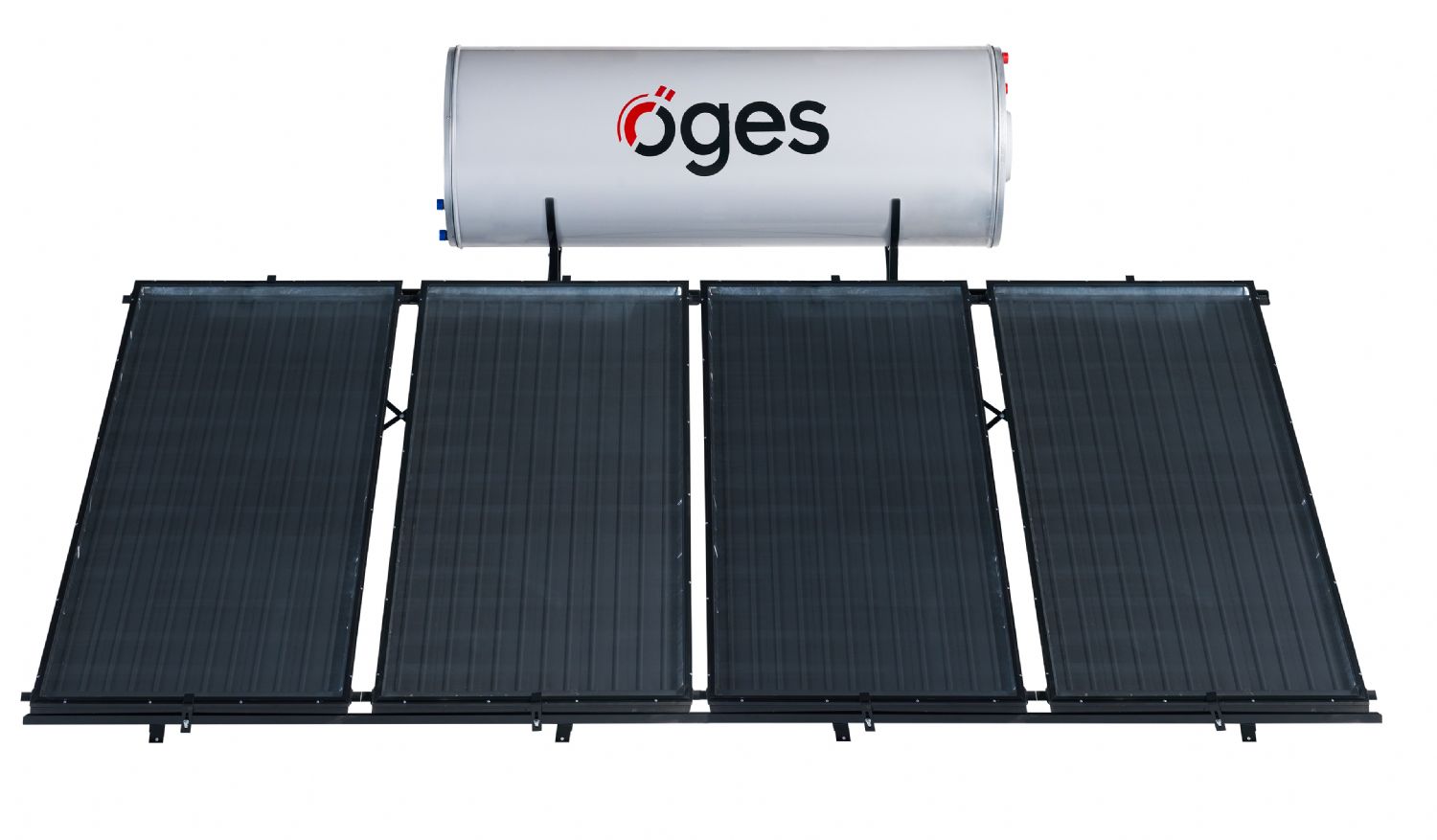

Ocean systems are antifreeze and pressurized systems that work directly with the city network without the addition of cold water supply or float. The inner surface is coated with titanium-based enamel and a hygienic and long service life is gained. Since it is closed to the atmosphere, the loss of antifreeze is minimal. They have higher performance and more comfortable usage than conventional float systems in terms of hot water comfort, especially designed for areas where there is no water interruption. System water capacity can be increased by connecting in parallel.

Working Principle

Such systems have natural circulation and work under pressure. It provides hot water at the same rate as the mains pressure. It works according to the principle of closed containers and reaches the mains pressure during the first filling before the system starts to work.
Icon
Icon
Icon
Icon
System Features
##O-04 500 LT CLOSED CIRCUIT HORIZONTAL TANKO-04-A 500 LT OPEN CIRCUIT LOWER TANK
Capacitylt500500
Diameter (D)mmØ 780Ø 780
Length (L)mm17801780
Cold water inlet Connection ( S )mm3/4"3/4"
Hot water outlet Connection ( Y )3/4"3/4"
Safety Valve (Anti-freeze ventilation outlet) ( V )1/2"
Back to Collector (cold) Connection ( N )3/4"3/4"
Return from Collector (hot) Connection ( M )3/4"3/4"
AnodeConnected on flangeConnected on flange
Magnesium Anode Size (L 1)mm500500
Heating (with Resistance) R1 1/4"1 1/4"
Flange (Ø T)mmØ96Ø96
Heating (with Resistance) R1 1/4"1 1/4"
Exchanger capacitylt27.5 liters
Storage Hot water volume (NET)lt500 lt500 lt
Insulation(Polyurethane)PolyurethanePolyurethane
(Polyurethane Thickness)mm60mm60mm
Exchanger Working pressurebar3 bars
Tank Working pressurebar9 bars9 bars
Test pressure in the tankbar13 bars13 bars
Exchanger Test pressurebar4.5 bars4.5 bars
Gross Weightkg180kg150kg
